Equipment
Design
Pressure vessels, heat exchangers, reactors, columns, and storage tanks, engineered to international codes with fabrication and lining requirements designed in from the start.
Designed for the code. Designed for the shop floor.
HAW offers equipment design for pressure vessels, heat exchangers, reactors, columns, and storage tanks to AD 2000, EN 13445, ASME Section VIII, API 650/620, and PED standards, delivered with the Jasmino Group's engineering centre in India.
Because the Group's designers work hand in hand with our Bockenem workshop, every design decision accounts for manufacturing reality: weld access, rolling capacity, head forming limits, and lining geometry requirements.
For equipment requiring rubber or plastic lining, the designers coordinate with our lining specialists from day one, ensuring nozzle projections, internal access, and surface geometry support flawless lining application.
No equipment designed for someone else to work out how to build. It is designed within the Group, then built and lined in Bockenem.
Integrated Design-to-Fabrication
Engineered to code, designed for manufacturing
Each equipment type follows specific design codes and manufacturing constraints.
Pressure Vessels
Vertical and horizontal vessels, columns, and reactors. Equipment up to Ø5.5 m diameter, 40 m length, 35 mm wall and 40 t single piece. FEA for complex geometries.
Heat Exchangers
Shell-and-tube, plate, air-cooled, and jacketed designs. Thermal rating, mechanical design, and vibration analysis in one design package.
Storage Tanks
Atmospheric and low-pressure storage tanks. Fixed roof, floating roof, and cone roof configurations with seismic and wind analysis.
Reactors & Columns

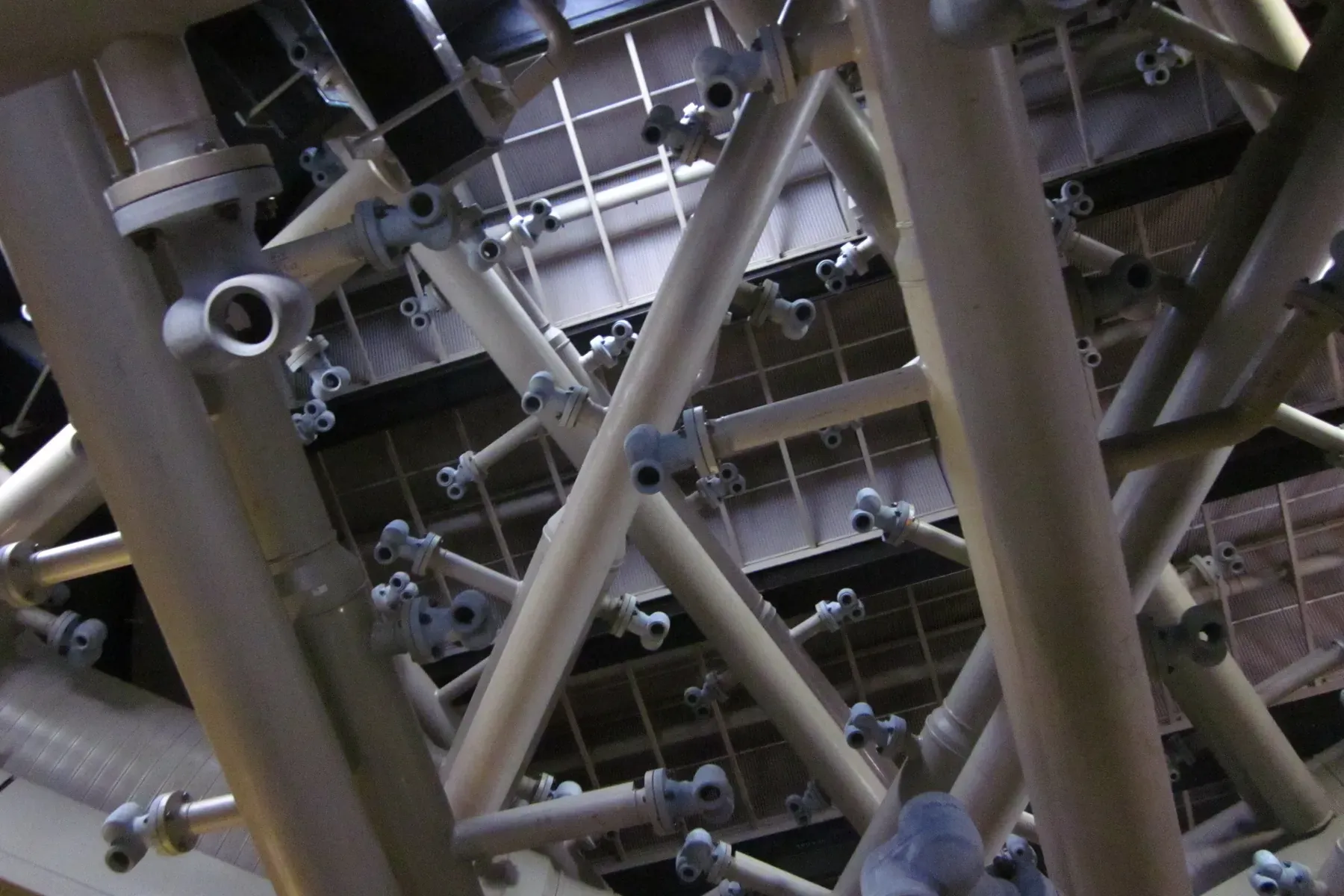

Chemical reactors, distillation columns, absorption towers with internal distribution systems. Designed with lining access geometry.
From datasheet to shop-ready drawings
A structured design workflow with built-in manufacturing coordination.
Code coverage at a glance
Equipment types and applicable design codes covered with the Jasmino Group.
| Equipment Type | ASME VIII | API 650/620 | PED | AD 2000 |
|---|---|---|---|---|
| Pressure Vessels | ||||
| Heat Exchangers | ||||
| Storage Tanks | ||||
| Reactors | ||||
| Columns & Towers |
